MiniMonitor Housing Assembly Only, with Bypass Hose and Bonding & Grounding Hose
MiniMonitor Housing Assembly Only, with Bypass Hose and Bonding & Grounding Hose


USD: (Registered Users Only)


Product Code: GTP-172H-MARK-II
Qty:

Description

GTP-172H MARK-II

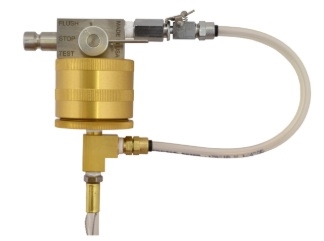

This is the MiniMonitor Housing assembly only, it has a male actuator inlet for connection to Sampling-Q.D's.

The MiniMonitor® is used to test aviation fuel for particulate contamination using the procedures described in ASTM D2276/IP216. A measured volume of fuel is passed from a flowing pipe directly through a 0.8 micrometer membrane. The plastic monitor holding the membrane is placed in an aluminum housing. Dirt particles are caught on the membrane which can be visually color rated or weighed for a gravimetric rating.

Features
  • Includes:
    Flushing head valve and monitor body assembly (GTP-172A)
    Bonding and grounding hose assembly (GTP-1110)
    Quick disconnect and hose assembly (GTP-1250)
    Bypass tee assembly (GTP-302C)

    NSN# 6630-01-230-2652


    For more information see Bulletin No. 8.

    The MiniMonitor Kit Complete (GTP-172 Mark II) - sold separately.
